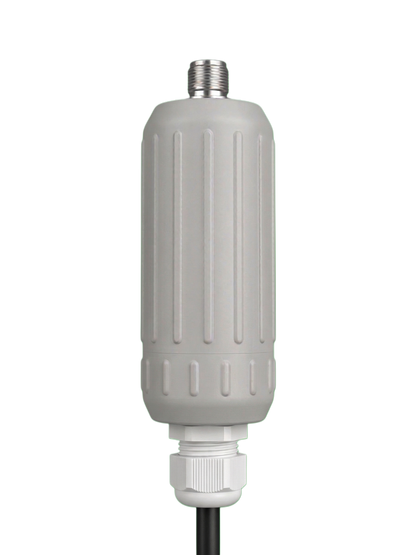

Outdoor PoE Node v1

LowMesh™ Outdoor PoE Node | High-Range Off-Grid Station

The LowMesh™ Outdoor PoE Node is a ruggedized, high-power base station designed to extend and secure your decentralized mesh network. Built for the elements, this device provides a high-performance anchor point for your Meshtastic® or MESHCORE™ network, enabling reliable communication without relying on cellular or internet infrastructure.

Perfect for mounting on a roof, mast, or wall, the Outdoor PoE Node is the ultimate solution for extending network range across larger areas, properties, or community networks. It serves as a robust gateway and relay station, ensuring dependable, private messaging and location sharing.

Key Features

• Dual Platform Compatibility: Fully compatible with Meshtastic® and MESHCORE™ software ecosystems. Flash online easily at lowmesh.com.
• Outdoor-Rated Enclosure: Designed to withstand the elements for permanent outdoor installation.
• High-Range Hardware: Powered by the high-efficiency RAK4630 module (nRF52840 + SX1262) @ 3.1v for powerful transmission.
• Power over Ethernet (PoE): Receives power via a single Ethernet cable for simplified installation (cable not included). Note: Ethernet is used for power delivery only, as the core module does not support TCP/IP data transmission.
• External N-Type Antenna: Features a standard N-type connector with +3dBi fiberglass antenna.

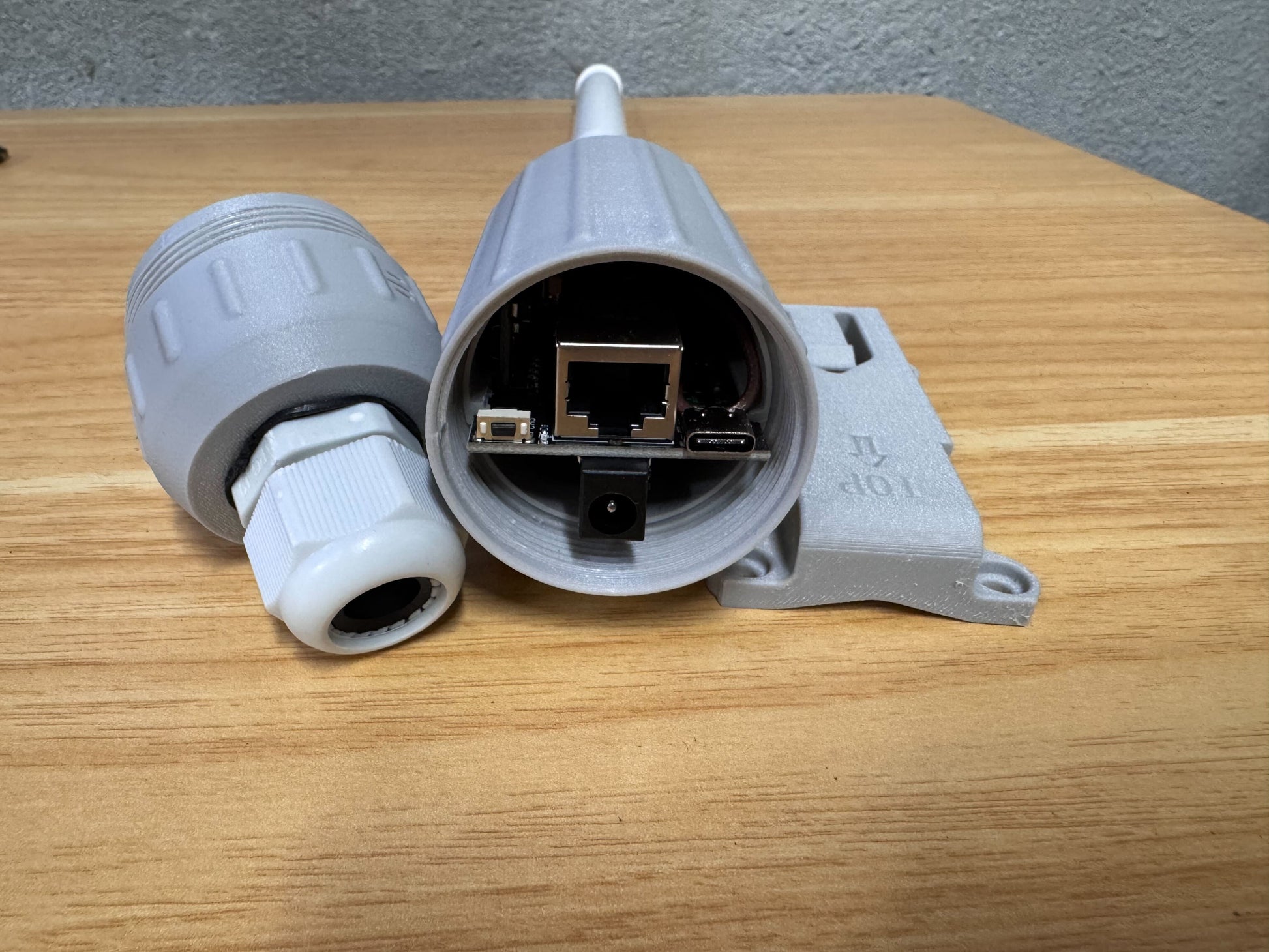

• Quick-Flash Updates: Internal USB-C port for easy firmware flashing (USB-C to USB-A cable included).
• Diagnostic LED: Communication LED for instant status and connection confirmation on the PCB.

Mounting & Portability

The Outdoor PoE Node includes everything needed for a variety of secure mounting configurations:

• Locking Mount Bracket: Includes screws for permanent, secure installation.

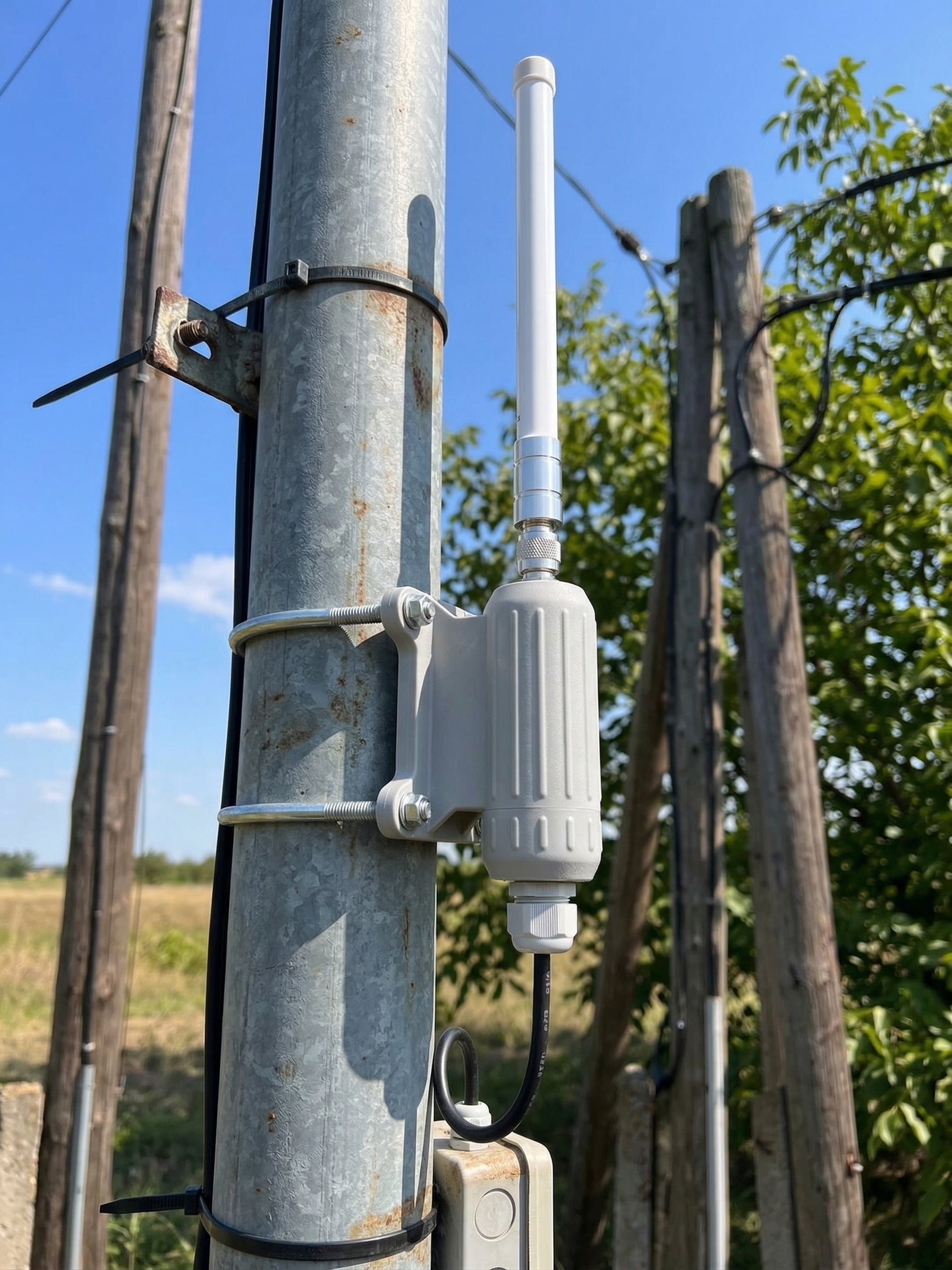

• Mast/Pole Mounting: Two (2) heavy-duty worm gear clamps are provided for secure attachment to poles or masts.
• Wall Mounting: Four (4) screws are provided for quick and secure wall installation.

What’s in the Box?

• (1) LowMesh™ Outdoor PoE Node Base Station
• (1) 48V PoE Injector (required for power)
• (1) Locking Mount Bracket and Screws
• (2) Worm Gear Pole Clamps
• (1) USB-C to USB-A Cable for Firmware Updates
• (1) +3dBi Gain N-Type Fiberglass antenna

Technical Specifications

Disclaimer: This product is not affiliated with, endorsed by, or associated with Meshtastic LLC. The term "Meshtastic®" is used solely to indicate compatibility with Meshtastic® software. Meshtastic® is a registered trademark of Meshtastic LLC. All rights reserved.

Made in USA of U.S. and imported parts.
